Description

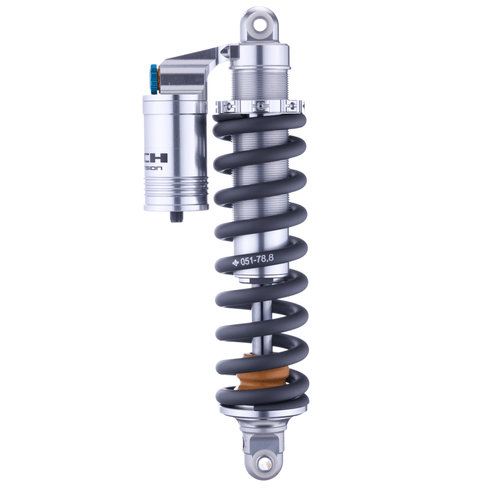

A high-performance shock that delivers a balance of support and sensitivity at the rear end of the bike.
Designed and engineered specifically for lightweight E-motos.

COMPATIBILITY*
283 ?? 80 mm: Fits

E-Ride Pro 2.0/3.0 & SR (direct mount)

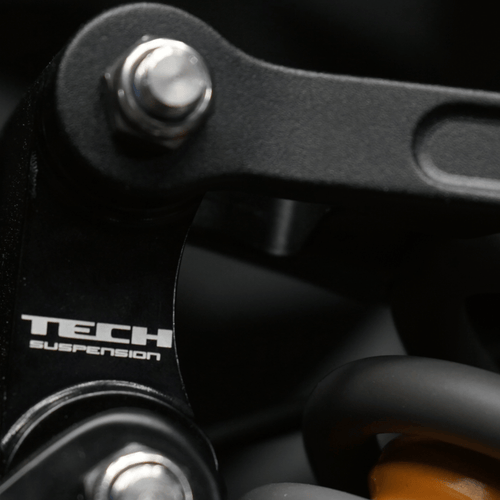

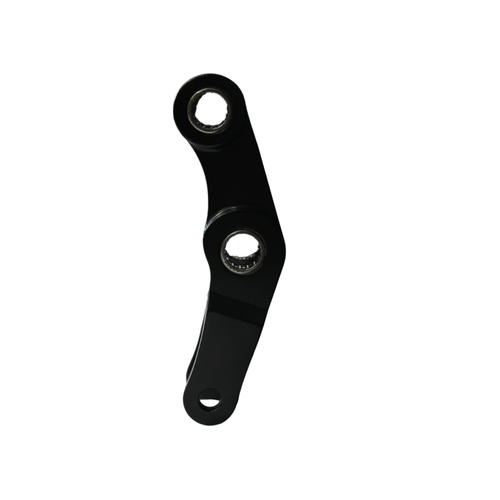

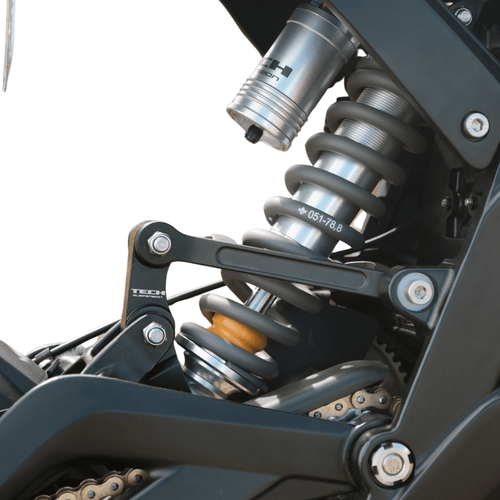

Surron Light Bee (linkage mount)

Ventus One/One Plus (linkage mount)

79 Bike Pro/GT (linkage mount)

CUSTOM ADJUSTABILITY

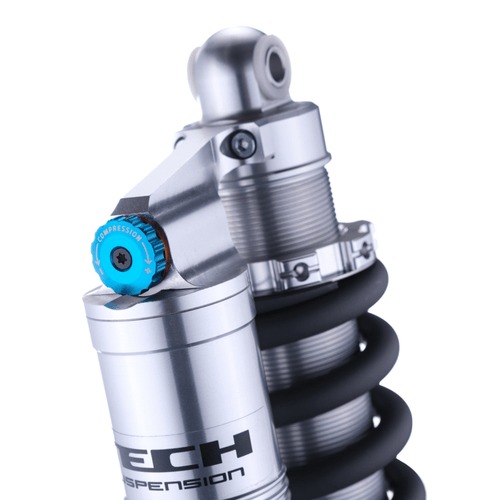

In addition to pre-load and rebound adjustment,the ER30 features the CTS (Compression Tuning System),a patented Formula/TECH Suspension innovation that allows fast,tool-free tuning of low- to mid-speed compression behavior.
Spring rate options:

78.8 N/mm (standard) ?? suitable for average-weight riders

105.6 N/mm (optional) ?? recommended for heavier riders or harder riding conditions

PERFORMANCE FEATURES

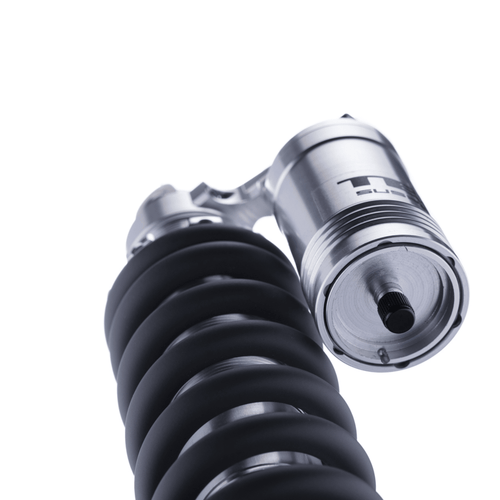

Piggyback Reservoir: Increased oil volume improves thermal stability during long or aggressive riding.

Internal Floating Piston (IFP) with Dual Seals: Prevents oil and gas mixing for consistent damping and long-term reliability.

High-Profile MDU Bumper: Enhances end-stroke progression and increases bottom-out resistance.

DU Bushings: Provides smooth,low-friction articulation with excellent durability for high-load off-road use.
